    【Jenkins】Remote access API でジョブ情報を取得する

    (更新日: 2025/11/6)
    47 分で読める
    Jenkins
    パイプライン
    ビルド

    はじめに

    こんにちは株式会社TIELECのタカシユウトです。この記事ではJenkinsのRemote access APIについて紹介します。Remote access APIを使うことで、ジョブやビルドの情報をプログラムから取得できます。

    Remote access API

    https://wiki.jenkins.io/display/JA/Remote+access+API

    もっとも初期からあると思われるAPIです。

    具体的には次のようなことができます。

    1. プログラムでJenkinsから情報を取得する
    2. 新しいビルドを起動する
    3. ジョブの作成、コピー といったことができます。

    使い方としてはURLの後ろに /api/json とつければ 色々情報が取れますというもの。

    フォルダの情報取得

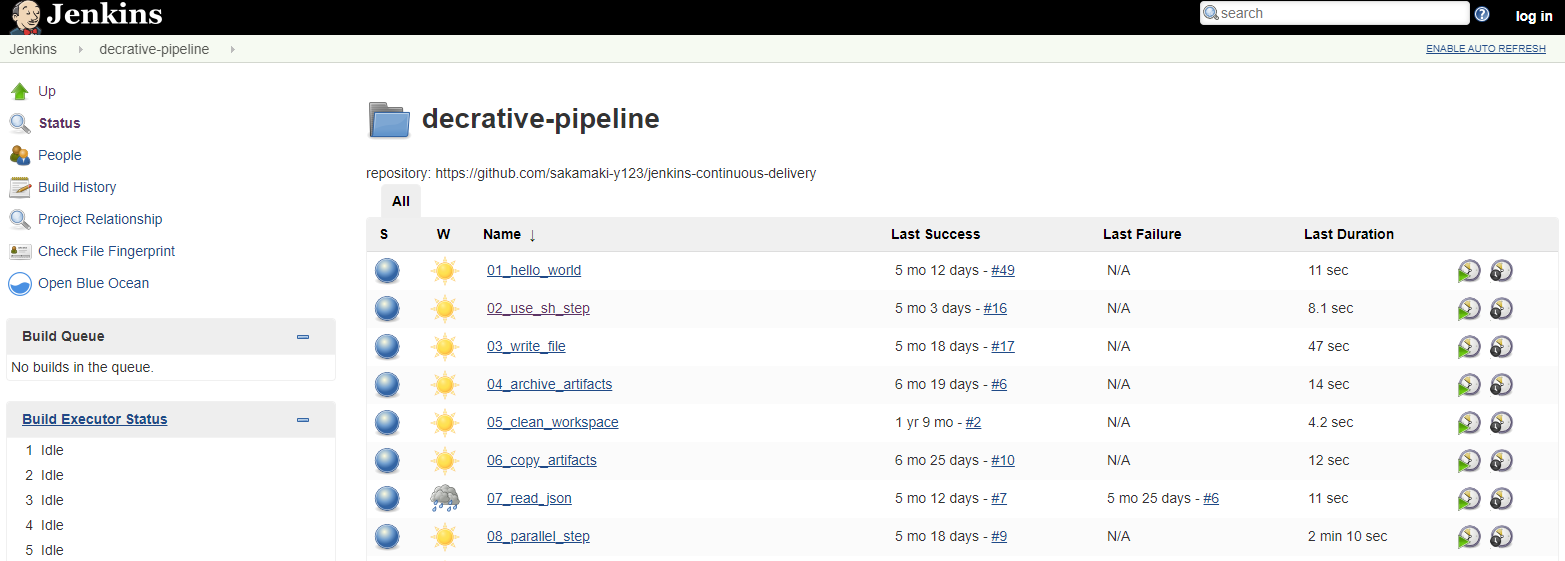

    以下のページからdecrative-pipelineという名称のフォルダより情報を取得してみます。 http://jenkins.tielec.blog:8080/job/decrative-pipeline/

    APIで情報を取得します。 http://jenkins.tielec.blog:8080/job/decrative-pipeline/api/json

    見やすいように整形したものがこちらです。

    Jsonをクリックで展開します

    {
   "_class":"com.cloudbees.hudson.plugins.folder.Folder",
   "actions":[
      {

      },
      {

      },
      {

      },
      {

      },
      {

      },
      {
         "_class":"com.cloudbees.plugins.credentials.ViewCredentialsAction"
      }
   ],
   "description":"repository: https://github.com/sakamaki-y123/jenkins-continuous-delivery",
   "displayName":"decrative-pipeline",
   "displayNameOrNull":null,
   "fullDisplayName":"decrative-pipeline",
   "fullName":"decrative-pipeline",
   "name":"decrative-pipeline",
   "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/",
   "healthReport":[
      {
         "description":"Worst health: decrative-pipeline » 07_read_json: Build stability: 3 out of the last 5 builds failed.",
         "iconClassName":"icon-health-20to39",
         "iconUrl":"health-20to39.png",
         "score":40
      }
   ],
   "jobs":[
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"01_hello_world",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/01_hello_world/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"02_use_sh_step",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/02_use_sh_step/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"03_write_file",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"04_archive_artifacts",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/04_archive_artifacts/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"05_clean_workspace",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/05_clean_workspace/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"06_copy_artifacts",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/06_copy_artifacts/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"07_read_json",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/07_read_json/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"08_parallel_step",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/08_parallel_step/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"09_agent_docker",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/09_agent_docker/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"10_use_multiple_docker",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/10_use_multiple_docker/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"11_read_and_write_yaml",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/11_read_and_write_yaml/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"12_input_request",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/12_input_request/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"13_conditional_run_stage",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/13_conditional_run_stage/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"14_run_ansible",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/14_run_ansible/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"15_use_shared_library",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/15_use_shared_library/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"16_use_global_variables",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/16_use_global_variables/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"17_nested_stage",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/17_nested_stage/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"18_matrix_build",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/18_matrix_build/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"19_random_kitten_generator",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/19_random_kitten_generator/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"20_search_youtube_video",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/20_search_youtube_video/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"21_amazon_translator",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/21_amazon_translator/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"22_download_hot_bokete_images",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/22_download_hot_bokete_images/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"23_download_random_kitten_images",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/23_download_random_kitten_images/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"24_download_beautiful_landscape-video",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/24_download_beautiful_landscape-video/",
         "color":"blue"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
         "name":"25_upload_artifact_to_dropbox",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/25_upload_artifact_to_dropbox/",
         "color":"blue"
      }
   ],
   "primaryView":{
      "_class":"hudson.model.AllView",
      "name":"all",
      "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/"
   },
   "views":[
      {
         "_class":"hudson.model.AllView",
         "name":"all",
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/"
      }
   ]
}

    フォルダ内にあるジョブのURLや名前などが確認できてきます。

    ジョブの情報取得

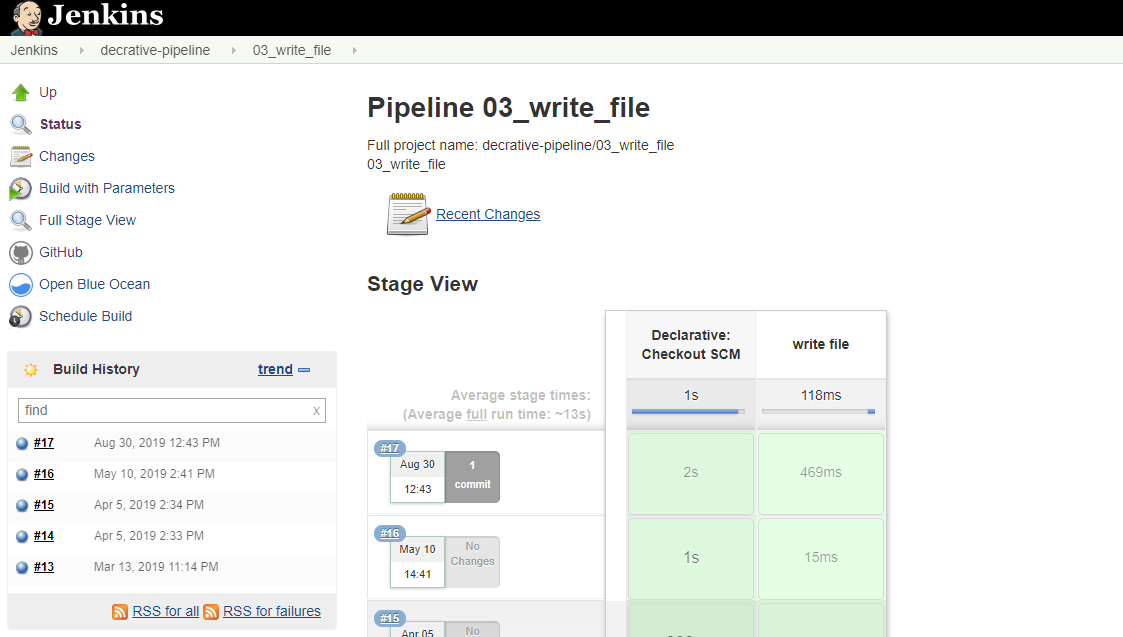

    続いて、03_write_file のジョブの情報を取得してみます。 http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/

    APIで情報を取得してみます。 http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/api/json

    Jsonをクリックで展開します

    {
   "_class":"org.jenkinsci.plugins.workflow.job.WorkflowJob",
   "actions":[
      {

      },
      {

      },
      {

      },
      {

      },
      {

      },
      {

      },
      {

      },
      {

      },
      {

      },
      {

      },
      {
         "_class":"com.cloudbees.plugins.credentials.ViewCredentialsAction"
      }
   ],
   "description":"03_write_file",
   "displayName":"03_write_file",
   "displayNameOrNull":null,
   "fullDisplayName":"decrative-pipeline » 03_write_file",
   "fullName":"decrative-pipeline/03_write_file",
   "name":"03_write_file",
   "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/",
   "buildable":true,
   "builds":[
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowRun",
         "number":17,
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/17/"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowRun",
         "number":16,
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/16/"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowRun",
         "number":15,
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/15/"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowRun",
         "number":14,
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/14/"
      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.WorkflowRun",
         "number":13,
         "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/13/"
      }
   ],
   "color":"blue",
   "firstBuild":{
      "_class":"org.jenkinsci.plugins.workflow.job.WorkflowRun",
      "number":13,
      "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/13/"
   },
   "healthReport":[
      {
         "description":"Build stability: No recent builds failed.",
         "iconClassName":"icon-health-80plus",
         "iconUrl":"health-80plus.png",
         "score":100
      }
   ],
   "inQueue":false,
   "keepDependencies":false,
   "lastBuild":{
      "_class":"org.jenkinsci.plugins.workflow.job.WorkflowRun",
      "number":17,
      "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/17/"
   },
   "lastCompletedBuild":{
      "_class":"org.jenkinsci.plugins.workflow.job.WorkflowRun",
      "number":17,
      "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/17/"
   },
   "lastFailedBuild":null,
   "lastStableBuild":{
      "_class":"org.jenkinsci.plugins.workflow.job.WorkflowRun",
      "number":17,
      "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/17/"
   },
   "lastSuccessfulBuild":{
      "_class":"org.jenkinsci.plugins.workflow.job.WorkflowRun",
      "number":17,
      "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/17/"
   },
   "lastUnstableBuild":null,
   "lastUnsuccessfulBuild":null,
   "nextBuildNumber":18,
   "property":[
      {
         "_class":"hudson.model.ParametersDefinitionProperty",
         "parameterDefinitions":[
            {
               "_class":"hudson.model.TextParameterDefinition",
               "defaultParameterValue":{
                  "_class":"hudson.model.StringParameterValue",
                  "name":"OUTPUT_TEXT",
                  "value":""
               },
               "description":"",
               "name":"OUTPUT_TEXT",
               "type":"TextParameterDefinition"
            }
         ]
      },
      {
         "_class":"com.coravy.hudson.plugins.github.GithubProjectProperty"
      }
   ],
   "queueItem":null,
   "concurrentBuild":true,
   "resumeBlocked":false
}

    ビルドの実行履歴などの情報が取得できています。

    ビルド結果の情報取得

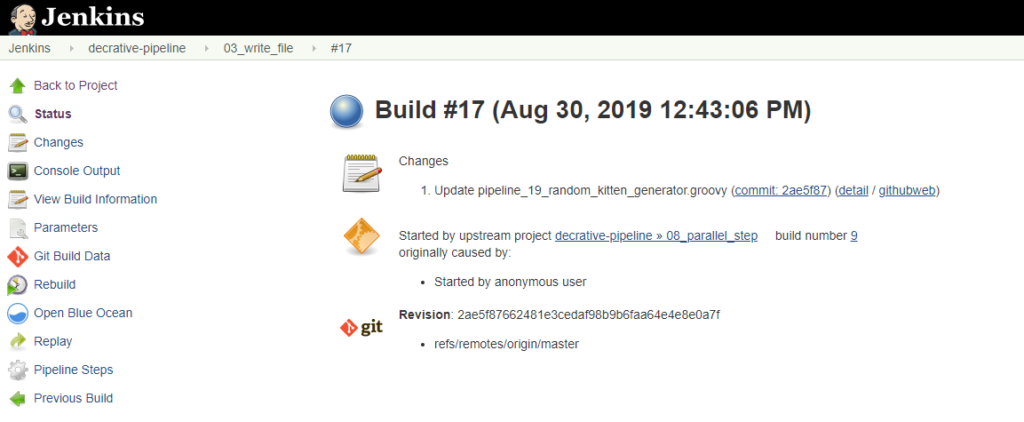

    続いて最新の実行結果に関する情報を取得してみます。このときの最新のビルド番号は17でした。 http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/17/

    APIでの取得結果はこちら http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/17/api/json

    Jsonをクリックで展開します

    {
   "_class":"org.jenkinsci.plugins.workflow.job.WorkflowRun",
   "actions":[
      {
         "_class":"hudson.model.CauseAction",
         "causes":[
            {
               "_class":"hudson.model.Cause$UpstreamCause",
               "shortDescription":"Started by upstream project \"decrative-pipeline/08_parallel_step\" build number 9",
               "upstreamBuild":9,
               "upstreamProject":"decrative-pipeline/08_parallel_step",
               "upstreamUrl":"job/decrative-pipeline/job/08_parallel_step/"
            }
         ]
      },
      {

      },
      {
         "_class":"hudson.model.ParametersAction",
         "parameters":[
            {
               "_class":"hudson.model.TextParameterValue",
               "name":"OUTPUT_TEXT",
               "value":"hoge hoge"
            }
         ]
      },
      {
         "_class":"hudson.plugins.git.util.BuildData",
         "buildsByBranchName":{
            "refs/remotes/origin/master":{
               "_class":"hudson.plugins.git.util.Build",
               "buildNumber":17,
               "buildResult":null,
               "marked":{
                  "SHA1":"2ae5f87662481e3cedaf98b9b6faa64e4e8e0a7f",
                  "branch":[
                     {
                        "SHA1":"2ae5f87662481e3cedaf98b9b6faa64e4e8e0a7f",
                        "name":"refs/remotes/origin/master"
                     }
                  ]
               },
               "revision":{
                  "SHA1":"2ae5f87662481e3cedaf98b9b6faa64e4e8e0a7f",
                  "branch":[
                     {
                        "SHA1":"2ae5f87662481e3cedaf98b9b6faa64e4e8e0a7f",
                        "name":"refs/remotes/origin/master"
                     }
                  ]
               }
            }
         },
         "lastBuiltRevision":{
            "SHA1":"2ae5f87662481e3cedaf98b9b6faa64e4e8e0a7f",
            "branch":[
               {
                  "SHA1":"2ae5f87662481e3cedaf98b9b6faa64e4e8e0a7f",
                  "name":"refs/remotes/origin/master"
               }
            ]
         },
         "remoteUrls":[
            "https://github.com/sakamaki-y123/jenkins-continuous-delivery.git"
         ],
         "scmName":""
      },
      {
         "_class":"hudson.plugins.git.GitTagAction"
      },
      {

      },
      {

      },
      {

      },
      {

      },
      {
         "_class":"org.jenkinsci.plugins.workflow.cps.EnvActionImpl"
      },
      {

      },
      {

      },
      {

      },
      {

      },
      {

      },
      {
         "_class":"org.jenkinsci.plugins.pipeline.modeldefinition.actions.RestartDeclarativePipelineAction"
      },
      {

      },
      {
         "_class":"org.jenkinsci.plugins.workflow.job.views.FlowGraphAction"
      },
      {

      },
      {

      },
      {

      }
   ],
   "artifacts":[

   ],
   "building":false,
   "description":null,
   "displayName":"#17",
   "duration":47339,
   "estimatedDuration":18597,
   "executor":null,
   "fullDisplayName":"decrative-pipeline » 03_write_file #17",
   "id":"17",
   "keepLog":false,
   "number":17,
   "queueId":84830,
   "result":"SUCCESS",
   "timestamp":1567136586337,
   "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/17/",
   "changeSets":[
      {
         "_class":"hudson.plugins.git.GitChangeSetList",
         "items":[
            {
               "_class":"hudson.plugins.git.GitChangeSet",
               "affectedPaths":[
                  "pipeline/decrative-pipeline/pipeline_19_random_kitten_generator.groovy"
               ],
               "commitId":"2ae5f87662481e3cedaf98b9b6faa64e4e8e0a7f",
               "timestamp":1565431885000,
               "author":{
                  "absoluteUrl":"http://jenkins.tielec.blog:8080/user/noreply",
                  "fullName":"noreply"
               },
               "authorEmail":"noreply@github.com",
               "comment":"Update pipeline_19_random_kitten_generator.groovy\n",
               "date":"2019-08-10 19:11:25 +0900",
               "id":"2ae5f87662481e3cedaf98b9b6faa64e4e8e0a7f",
               "msg":"Update pipeline_19_random_kitten_generator.groovy",
               "paths":[
                  {
                     "editType":"edit",
                     "file":"pipeline/decrative-pipeline/pipeline_19_random_kitten_generator.groovy"
                  }
               ]
            }
         ],
         "kind":"git"
      }
   ],
   "culprits":[
      {
         "absoluteUrl":"http://jenkins.tielec.blog:8080/user/noreply",
         "fullName":"noreply"
      }
   ],
   "nextBuild":null,
   "previousBuild":{
      "number":16,
      "url":"http://jenkins.tielec.blog:8080/job/decrative-pipeline/job/03_write_file/16/"
   }
}

    ビルドの実行結果や、実行時間、上流のジョブなど、より詳細な情報を取得できています。

    まとめ

    この記事では、JenkinsのAPIを使ってジョブの情報を取得する方法について紹介しました。APIを活用することで、Jenkinsの情報をプログラムから取得したり、自動化を進めることができます。

    おすすめ書籍

    もっと深く学びたい方へ

    この記事で、Remote APIを使った情報取得の方法は理解できたと思います。

    でも、「どの情報を外部システムに連携すべきか」「API経由の操作をどこまで許可するか」という判断は、セキュリティと利便性のバランスを考える必要があります。

    より深い理解のために、こちらの記事もおすすめです：

    SREの仕事 ― 問題発見から恒久対応、そして結果観察まで

    SREの仕事 ― 問題発見から恒久対応、そして結果観察まで

    Tech
    SRE
    AI駆動開発の最適な検証サイクルを考える──人間とAI、それぞれの「テストのタイミング」

    AI駆動開発の最適な検証サイクルを考える──人間とAI、それぞれの「テストのタイミング」

    Tech
    AI開発
    この場所について
    タカシユウト

    タカシユウト

    TIELEC 代表

    エンジニアとして現役で開発に携わりながら、人事領域の知見も掛け合わせて思考整理の壁打ち相手をしています。

    DevLoop Runner

    AIと協働できるエンジニアを育てる

    Issue設計からレビューまで、AIとの協働プロセスを可視化し、思考の進化を実践する環境。

    詳しく見る

    対話の時間について

    思考整理を対話で行うこともできます

    この記事は役に立ちましたか？

    Coffee cup

    この記事が、何かの整理につながったら

    コーヒー1杯分の応援をもらえると嬉しいです。

    ※ これは応援とは別の話ですが、

    同じようなテーマを自分の文脈で整理したい場合は、 （文章だけだと詰まりやすい人向けに） 思考整理の壁打ちという形で対話の時間も取っています。

    → 対話の時間について

    あなたへのおすすめ
